Dujardin Mews

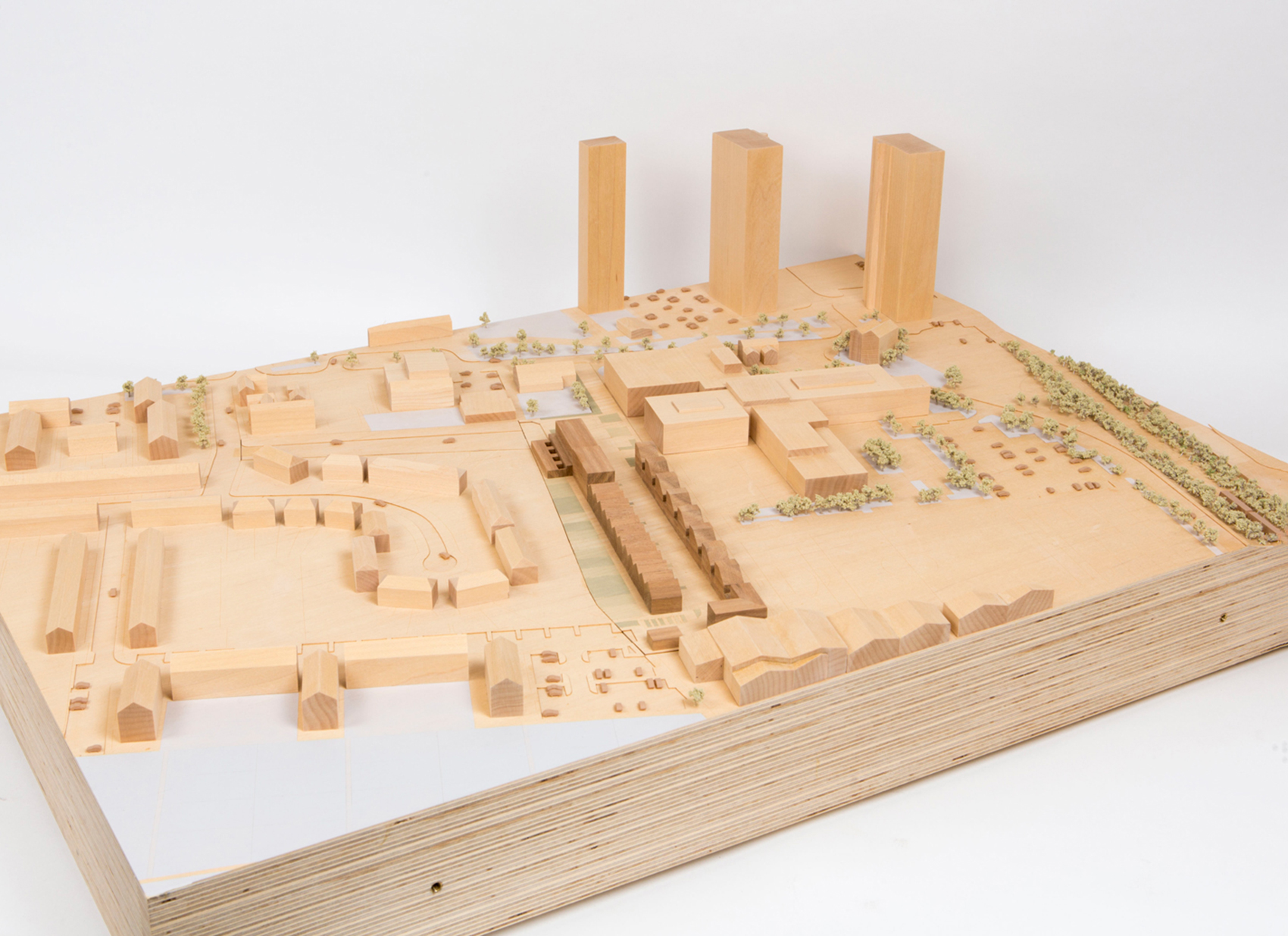

  • Site model, 1:500

    (NextOptim Off)
  • Street model, 1:250

    (NextOptim Off)

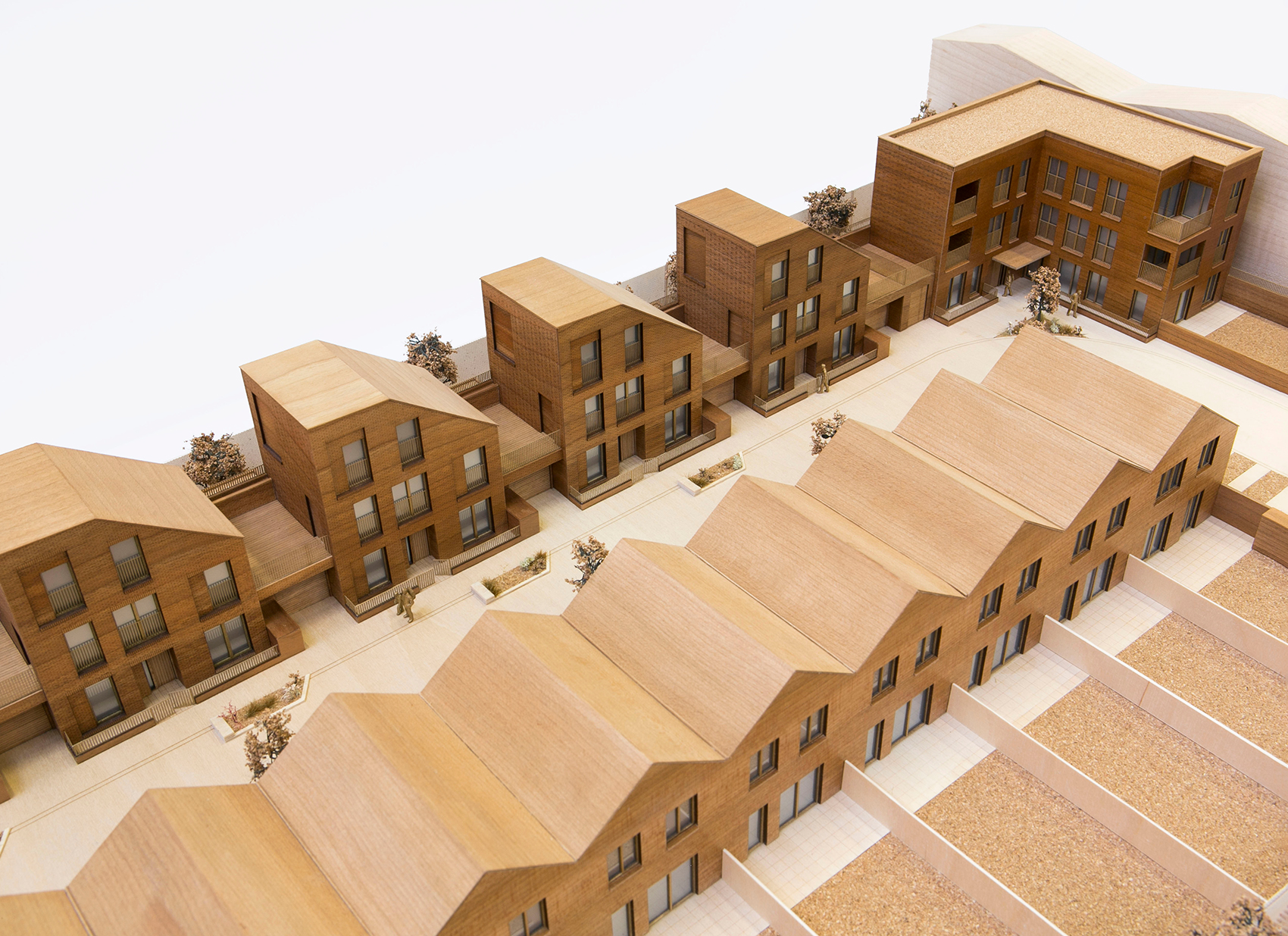

  • Model showing family homes and the apartment building at the southern end of the street

    (NextOptim Off)

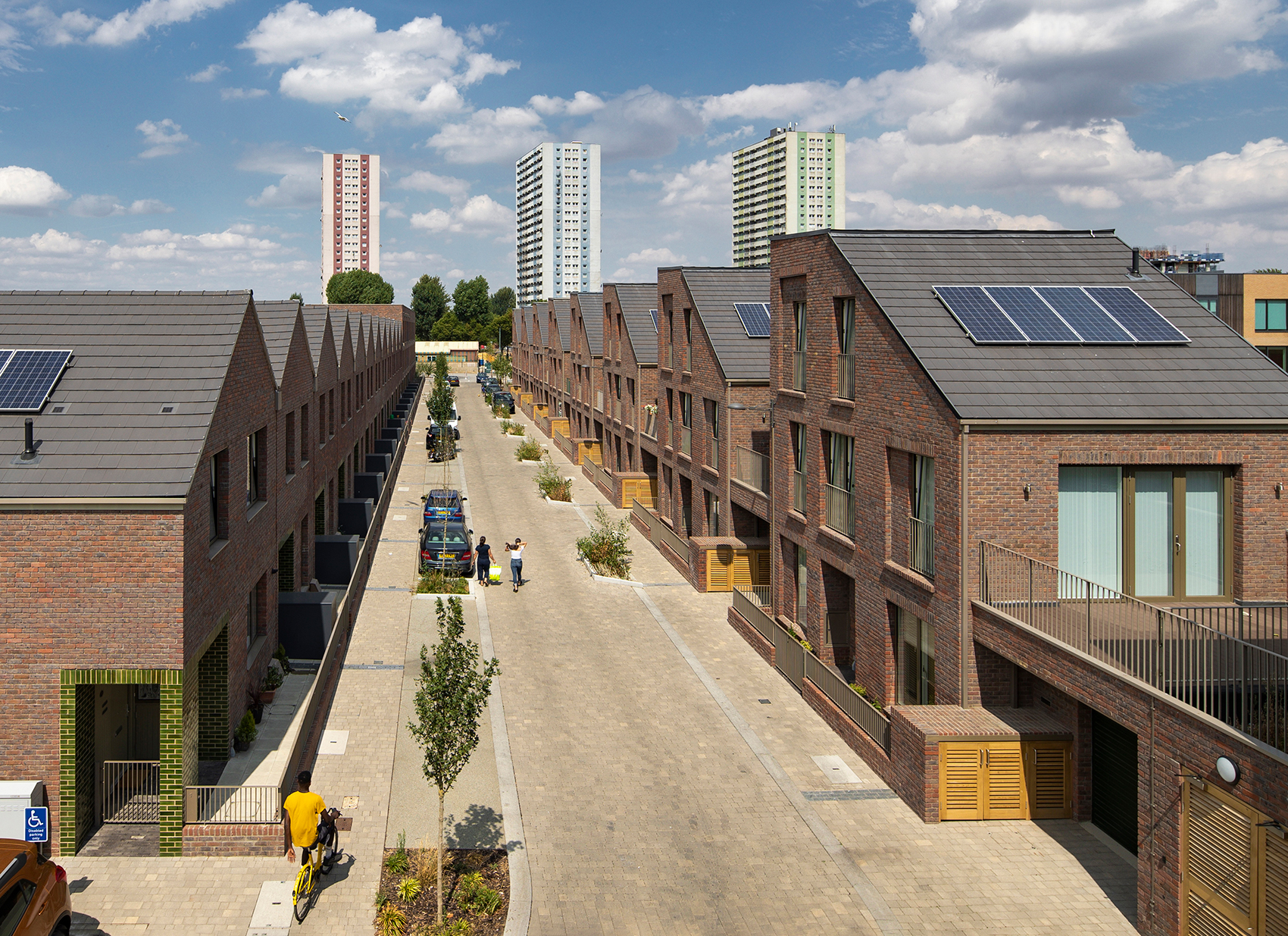

  • Street view looking north-east

    (NextOptim Off)
  • View of family home with connecting private first floor terraces

    (NextOptim Off)
  • Sectional axonometric of family home

    (NextOptim Off)

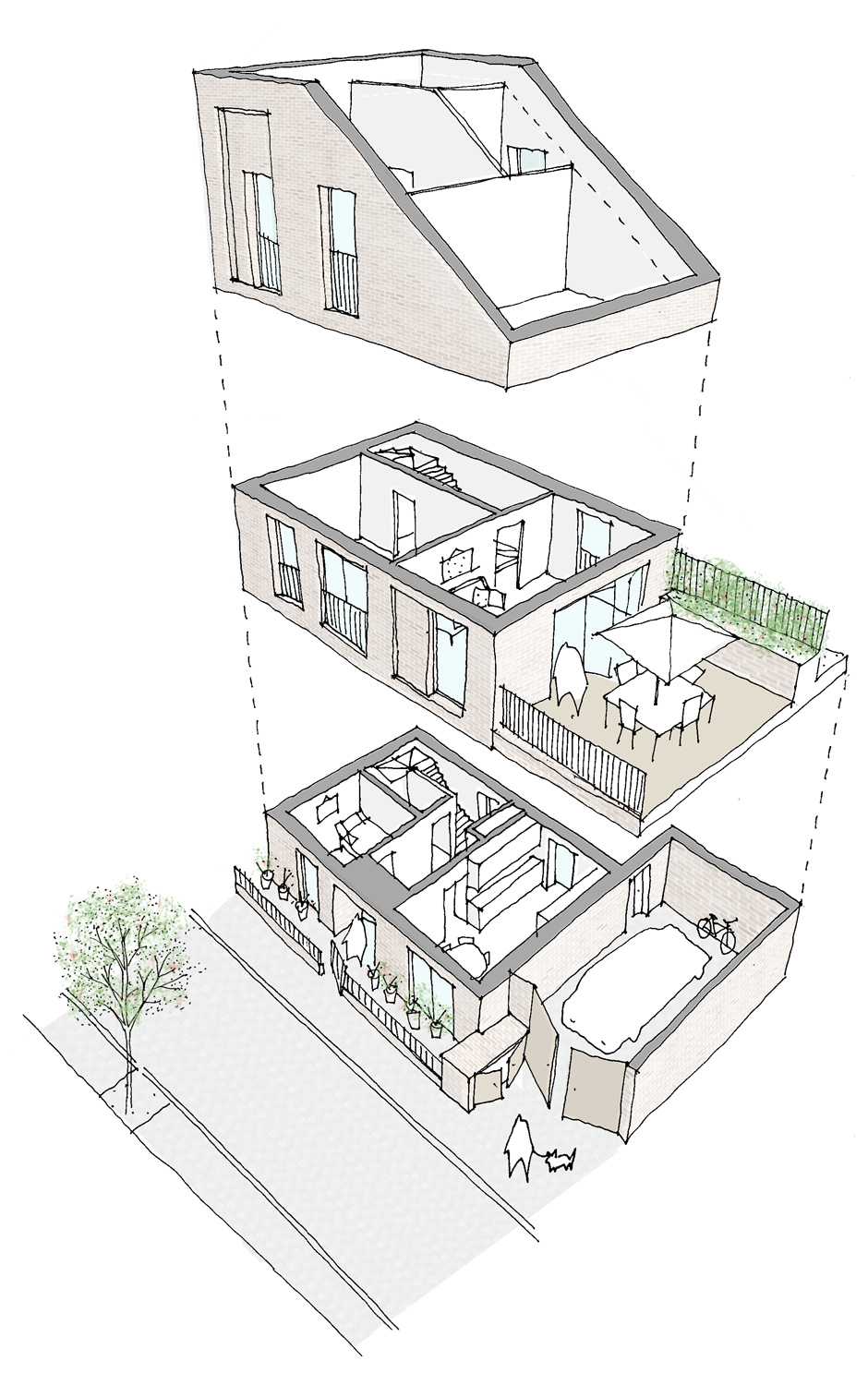

  • Exploded axonometric of family home

    (NextOptim Off)

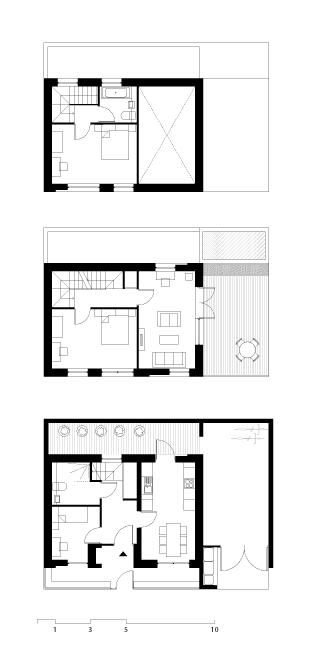

  • Dwelling plan of family home

    (NextOptim Off)

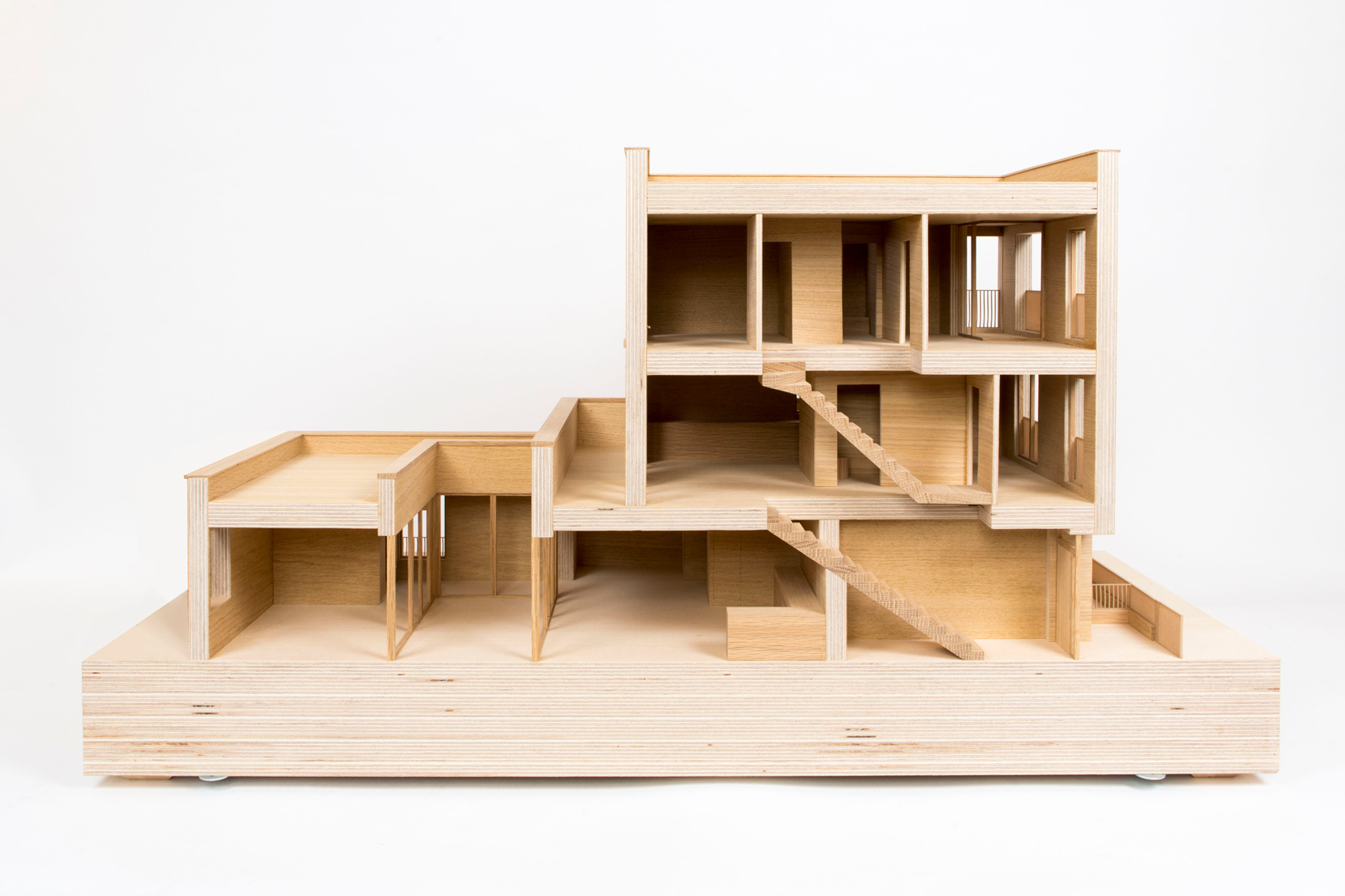

  • Sectional model of maisonette and ground floor courtyard flat, 1:25

    (NextOptim Off)

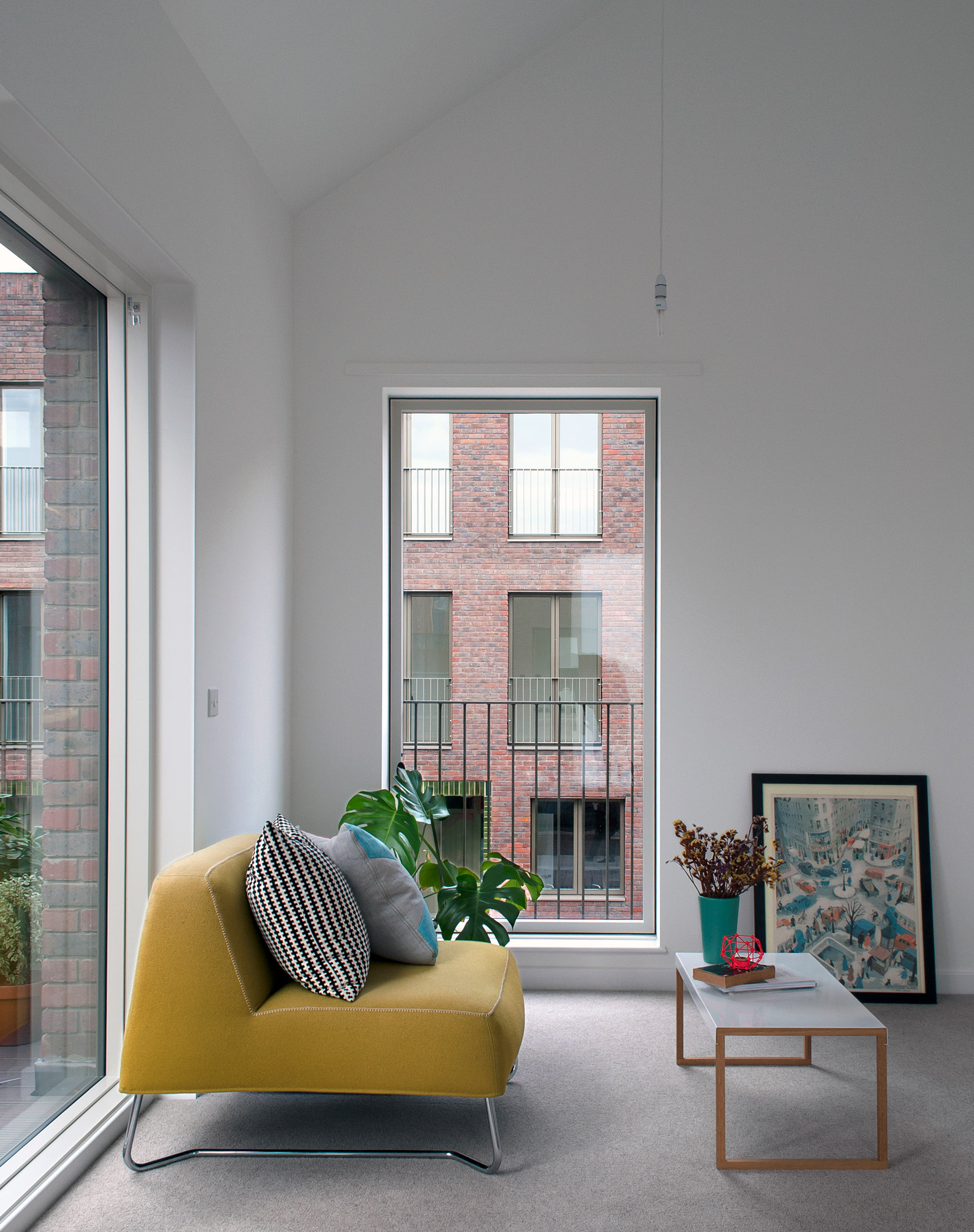

  • Interior view of dual-aspect living room

    (NextOptim Off)
  • Interior view of ground floor living room looking through to private courtyard space

    (NextOptim Off)

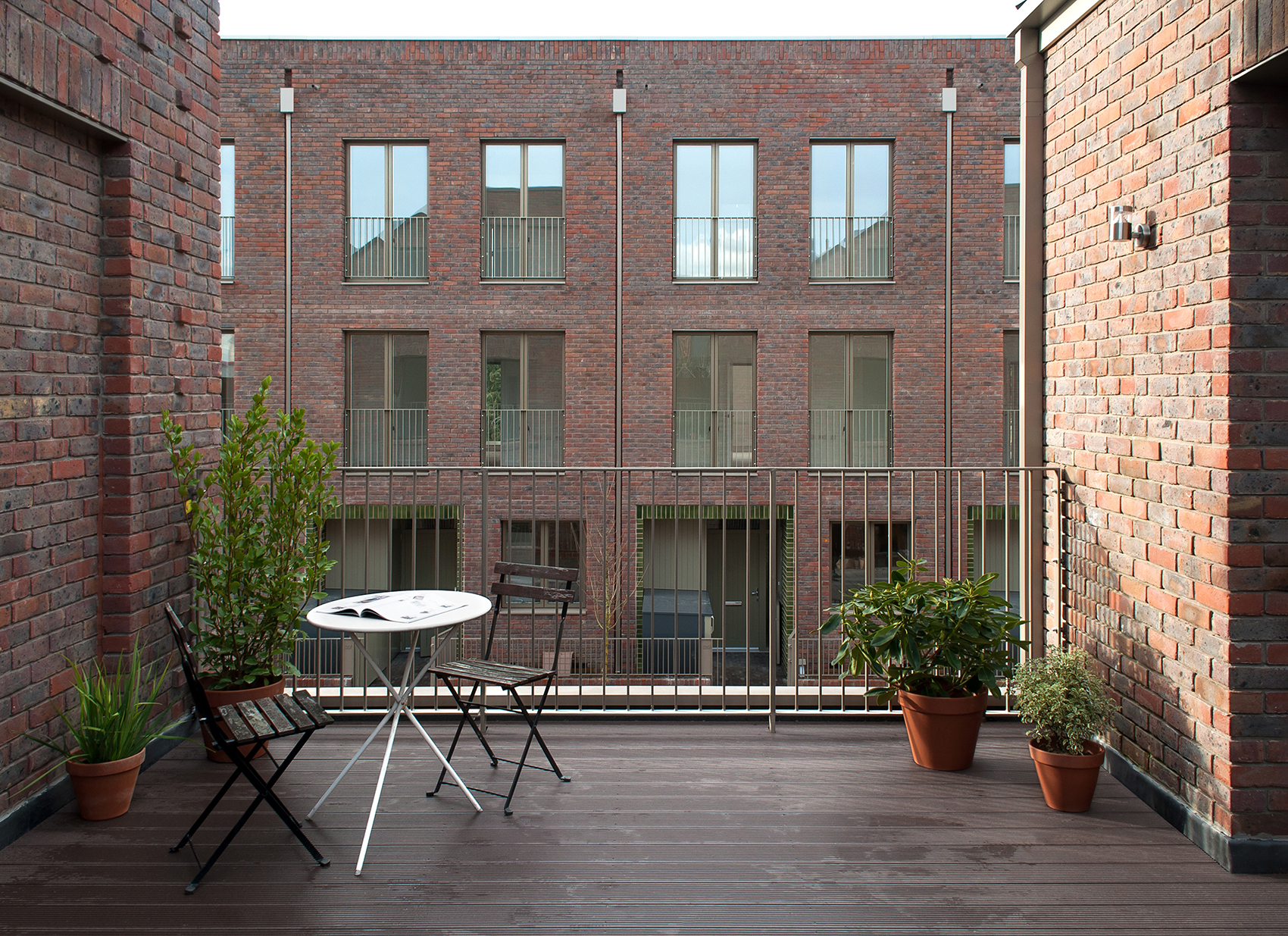

  • View of private first floor terrace

    (NextOptim Off)

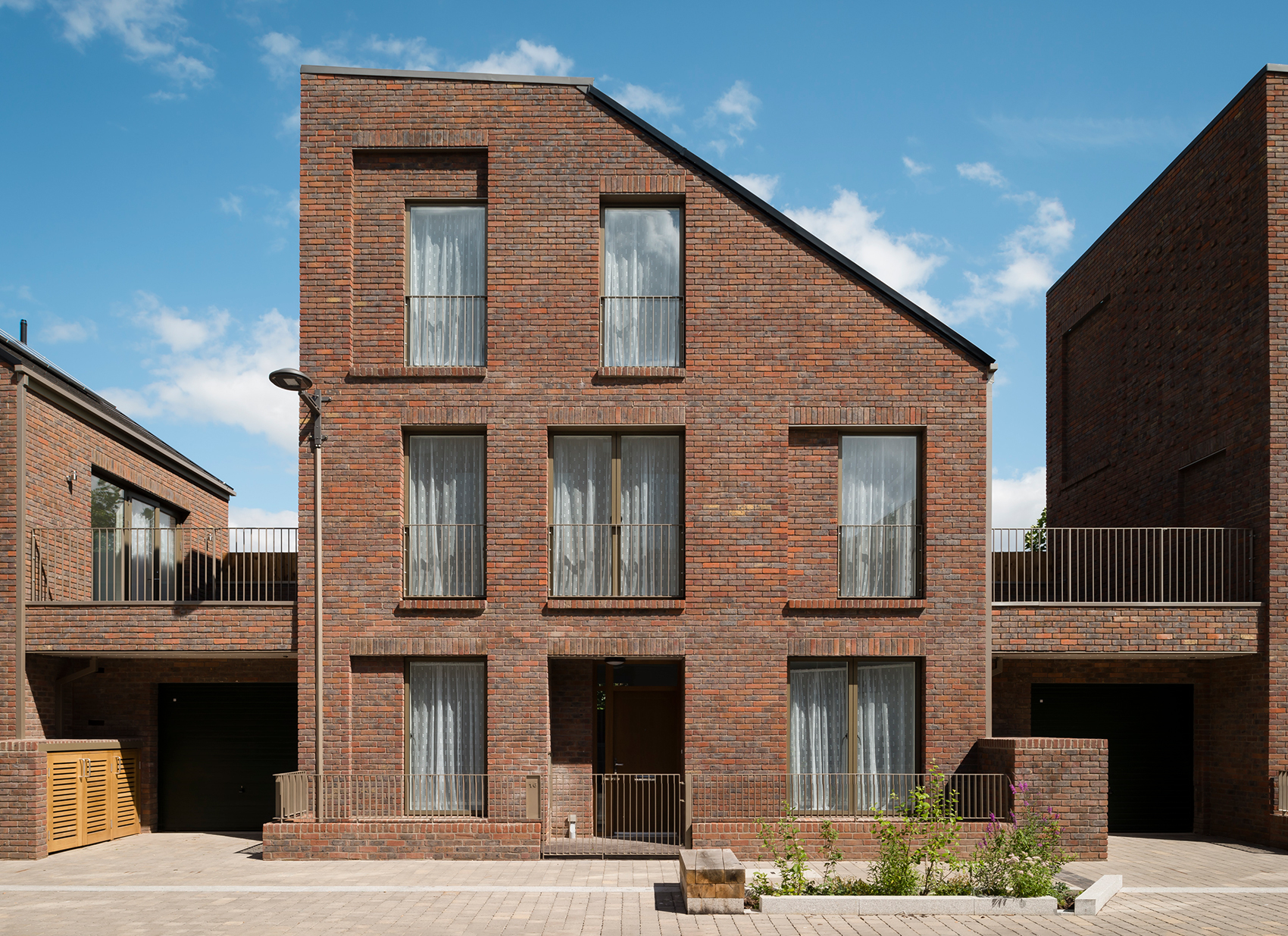

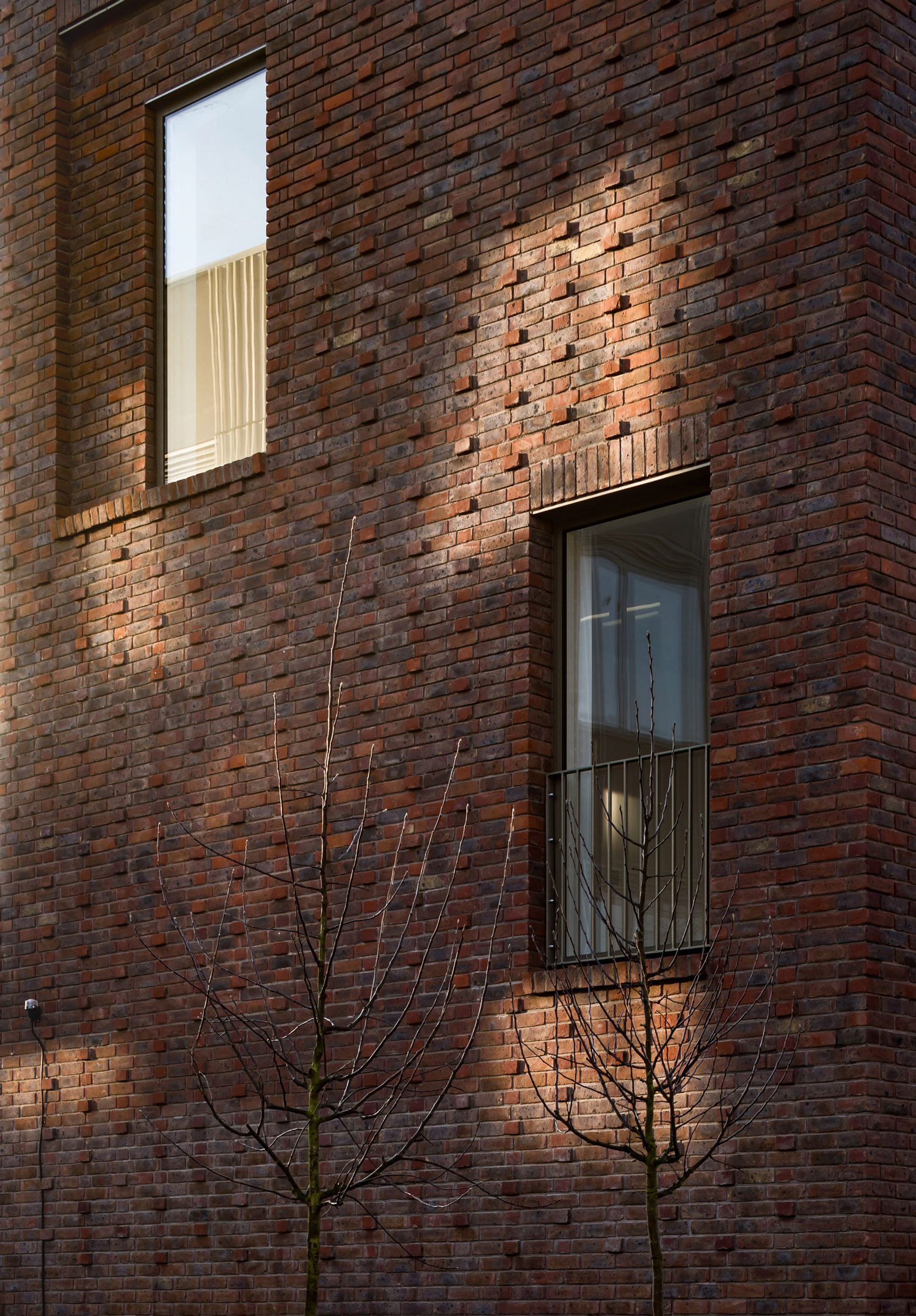

  • View of gable elevation with articulated brickwork

    (NextOptim Off)

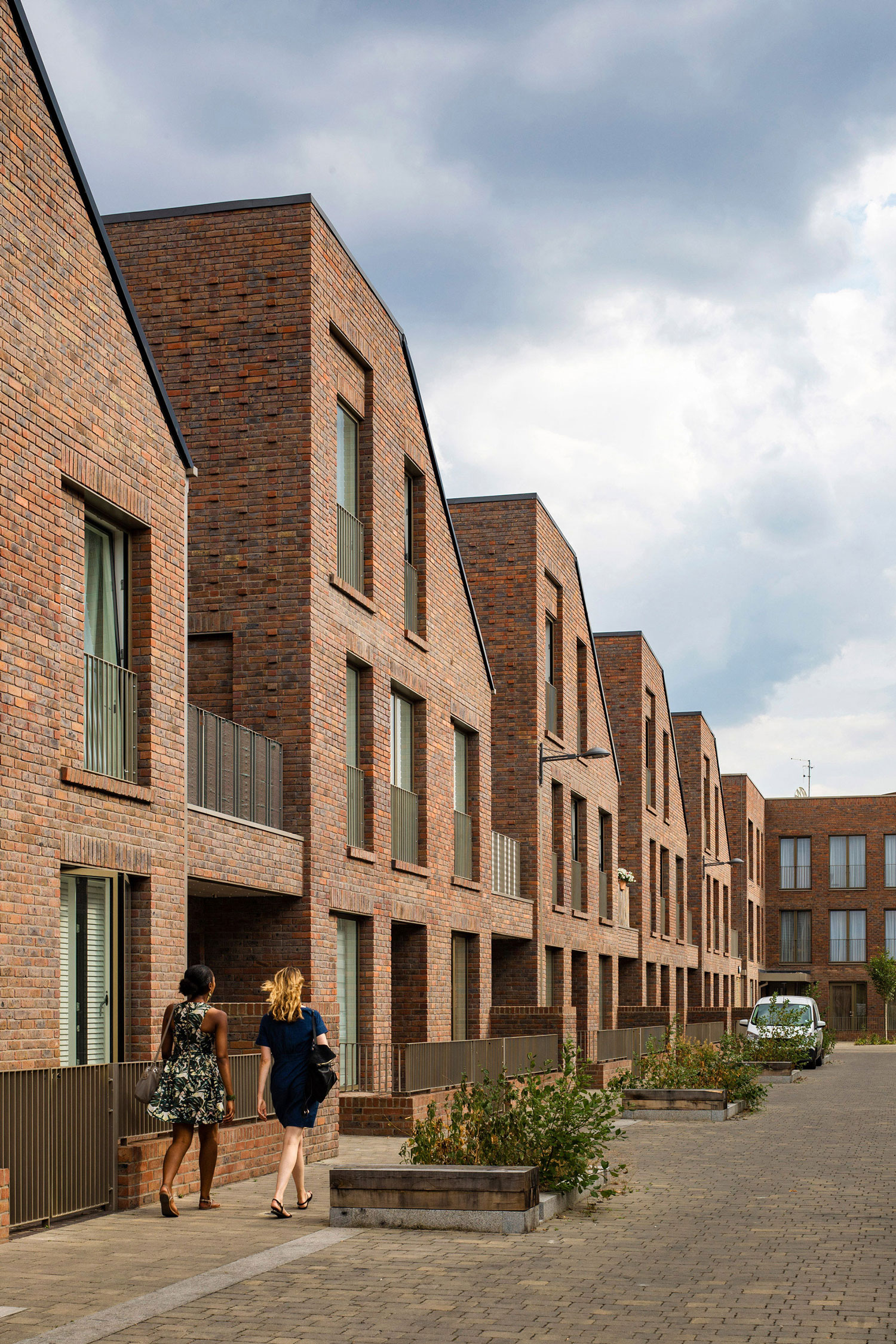

  • Street view of family homes looking south-west

    (NextOptim Off)
1 / 14
Client
Enfield Council
Borough
The London Borough of Enfield
Location
JXR6
Status
Completed 2017
Scale
0.79ha
Units and density
38 homes, 48dph
Tenure
50% social rent, 50% affordable

Dujardin Mews was the first social housing to be built directly by the London Borough of Enfield for around 40 years. The project forms the first phase of the wider Ponders End programme, creating replacement homes for the neighbouring Alma Estate and setting a new benchmark for future and sustainable redevelopment in the borough.

Our design unlocks a narrow, rectangular plot of brownfield land between the Oasis Academy School and a nearby suburban neighbourhood and creates 38 homes of differing typologies arranged in two terraces to create a new street through the site, re-linking important pedestrian connections between north and south and establishing a layout that encourages chance encounters and neighbourliness.

We collaborated with Maccreanor Lavington to create variety in built form and typology across the two terraces. The west terrace consists mainly of 2-storey houses, with 3-storey homes to the north, and provides a mix of family houses, maisonettes and courtyard apartments, while the eastern terrace is comprised of predominately
3-storey family homes, with a taller apartment building to the south masking nearby industrial units. The variety of types provided responds to local housing need and also contributes to the distinct character of the street.

Owing to site restraints, the east terrace features a set of uniquely slim family homes that are orientated west to the street with private first floor terraces facing to the south, creating an arrangement where space is not compromised and no habitable rooms overlook the neighbouring school. Townhouses featuring pitched and mono-pitched roofs create an articulated and varied street profile, allowing daylight to flood the public realm. Internally, all homes are designed to be spacious and adaptable, with substantial floor-to-ceiling heights and ample natural light and ventilation.

A thoughtfully-planned, biodiverse landscaped public route connects all homes throughout the two terraces, featuring a play area and seating which marks the northern entrance to the street. To reduce fuel poverty, the scheme achieves Code for Sustainable Homes (CfSH) Level 5. Ambitious in its design and an exemplar for projects of its kind, Dujardin Mews was named in the Top 10 projects of 2017 by the Times and Guardian Newspapers.

Design Team

Civils
Peter Brett Associates
Collaborator
Maccreanor Lavington Architects
Contractor
Durkan
Landscape
East Architecture Landscape Urban Design
M&E
Designbrook
Planning
Tibbalds Planning and Urban Design
Structures
Peter Brett Associates

Awards

Civic Trust Award 2018
AIA UK Excellence in Design Awards 2018 – shortlist
Highly Commended London Planning Awards 2018
American Architecture Prize 2017 – Social Housing
American Architecture Prize 2017 – Residential
RIBA National Award 2017
RIBA London Award 2017
Brick Award 2017 – Urban Regeneration Project
Commended New London Awards 2017 - Housing
AJ Architecture Awards 2017 - Housing - shortlist
Brick Awards 2017 - Large Housing Development Award - shortlist
Housing Design Awards 2017 - shortlist
Civic Trust Awards 2017 - Regional Finalist

Photography

Agnese Sanvito (architectural models), Emanuelis Stasaitis, Jim Stephenson, Mark Hadden, Tim Crocker
